E500 - dormer hss brillante m m machos de máquina estrías rectas estrías rectas iso 529
Marca: Rationalstock
Desde 11,0352 € 9,1200 € sin IVA
Oferta:
PVP:
Producto agotado, no disponible en este momento.
Próxima entrada de stock en camino, prevista
Descripción
Machos de Roscar M1 - M56
Ref.
Breve descripción

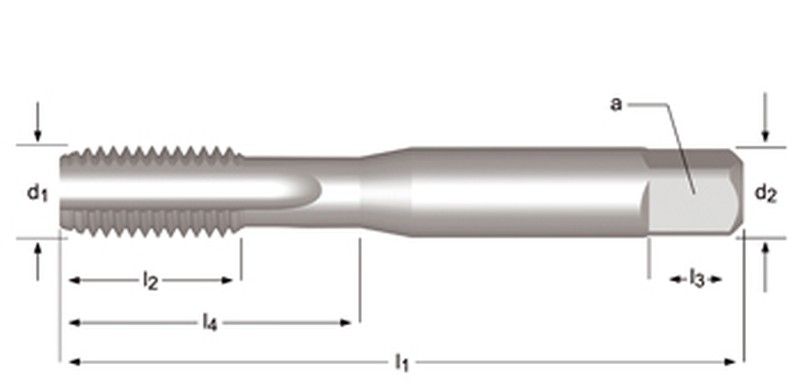

l2 mm | M
l1 mm | [/] a mm
P mm | l3 mm
d2 Ø mm | l4 mm
z | Drill Ø
Formato
Stock y entrega
Ref.: DM011493
Breve descripción: M1.2 x 0.25 mm
l2 mm | M: 4.5 | 1.2
l1 mm | [/] a mm: 38 | 2.00
P mm | l3 mm: 0.25 | 4
d2 Ø mm | l4 mm: 2.50 | 4.5
z | Drill Ø: 2 | 0.95
Formato: Unidad
Ref.: DM011494
Breve descripción: M1.2 x 0.25 mm
l2 mm | M: 4.5 | 1.2
l1 mm | [/] a mm: 38 | 2.00
P mm | l3 mm: 0.25 | 4
d2 Ø mm | l4 mm: 2.50 | 4.5
z | Drill Ø: 2 | 0.95
Formato: Unidad
Ref.: DM011495
Breve descripción: M1.2 x 0.25 mm
l2 mm | M: 4.5 | 1.2
l1 mm | [/] a mm: 38 | 2.00
P mm | l3 mm: 0.25 | 4
d2 Ø mm | l4 mm: 2.50 | 4.5
z | Drill Ø: 2 | 0.95
Formato: Unidad
Ref.: DM011496
Breve descripción: M1.4 x 0.30 mm
l2 mm | M: 6 | 1.4
l1 mm | [/] a mm: 40 | 2.00
P mm | l3 mm: 0.30 | 4
d2 Ø mm | l4 mm: 2.50 | 6
z | Drill Ø: 2 | 1.1
Formato: Unidad
Ref.: DM011497
Breve descripción: M1.4 x 0.30 mm
l2 mm | M: 6 | 1.4
l1 mm | [/] a mm: 40 | 2.00
P mm | l3 mm: 0.30 | 4
d2 Ø mm | l4 mm: 2.50 | 6
z | Drill Ø: 2 | 1.1
Formato: Unidad
Ref.: DM011498
Breve descripción: M1.4 x 0.30 mm
l2 mm | M: 6 | 1.4
l1 mm | [/] a mm: 40 | 2.00
P mm | l3 mm: 0.30 | 4
d2 Ø mm | l4 mm: 2.50 | 6
z | Drill Ø: 2 | 1.1
Formato: Unidad
Ref.: DM011499
Breve descripción: M1.6 x 0.35 mm
l2 mm | M: 8 | 1.6
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.25
Formato: Unidad
Ref.: DM011500
Breve descripción: M1.6 x 0.35 mm
l2 mm | M: 8 | 1.6
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.25
Formato: Unidad
Ref.: DM011501
Breve descripción: M1.6 x 0.35 mm
l2 mm | M: 8 | 1.6
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.25
Formato: Unidad
Ref.: DM011502
Breve descripción: M1.6 x 0.35 mm
l2 mm | M: 8 | 1.6
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.25
Formato: Unidad
Ref.: DM011503
Breve descripción: M1.7 x 0.35 mm
l2 mm | M: 8 | 1.7
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.35
Formato: Unidad
Ref.: DM011504
Breve descripción: M1.7 x 0.35 mm
l2 mm | M: 8 | 1.7
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.35
Formato: Unidad
Ref.: DM011505
Breve descripción: M1.7 x 0.35 mm
l2 mm | M: 8 | 1.7
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.35
Formato: Unidad
Ref.: DM011506
Breve descripción: M1.7 x 0.35 mm
l2 mm | M: 8 | 1.7
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.35
Formato: Unidad
Ref.: DM011507
Breve descripción: M1.7 x 0.35 mm
l2 mm | M: 8 | 1.7
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.35
Formato: Unidad
Ref.: DM011508
Breve descripción: M1.8 x 0.35 mm
l2 mm | M: 8 | 1.8
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.45
Formato: Unidad
Ref.: DM011509
Breve descripción: M1.8 x 0.35 mm
l2 mm | M: 8 | 1.8
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.45
Formato: Unidad
Ref.: DM011510
Breve descripción: M1.8 x 0.35 mm
l2 mm | M: 8 | 1.8
l1 mm | [/] a mm: 41 | 2.00
P mm | l3 mm: 0.35 | 4
d2 Ø mm | l4 mm: 2.50 | 8
z | Drill Ø: 2 | 1.45
Formato: Unidad
Ref.: DM011490
Breve descripción: M1 x 0.25 mm
l2 mm | M: 4.5 | 1
l1 mm | [/] a mm: 38 | 2.00
P mm | l3 mm: 0.25 | 4
d2 Ø mm | l4 mm: 2.50 | 4.5
z | Drill Ø: 2 | 0.75
Formato: Unidad
Ref.: DM011491
Breve descripción: M1 x 0.25 mm
l2 mm | M: 4.5 | 1
l1 mm | [/] a mm: 38 | 2.00
P mm | l3 mm: 0.25 | 4
d2 Ø mm | l4 mm: 2.50 | 4.5
z | Drill Ø: 2 | 0.75
Formato: Unidad
Ref.: DM011492
Breve descripción: M1 x 0.25 mm
l2 mm | M: 4.5 | 1
l1 mm | [/] a mm: 38 | 2.00
P mm | l3 mm: 0.25 | 4
d2 Ø mm | l4 mm: 2.50 | 4.5
z | Drill Ø: 2 | 0.75
Formato: Unidad
Ref.: DM011591
Breve descripción: M10 x 1.50 mm
l2 mm | M: 18 | 10.00
l1 mm | [/] a mm: 11 | 80
P mm | l3 mm: 10 | 1.50
d2 Ø mm | l4 mm: 8.00 | 34
z | Drill Ø: 3 | 8.5
Formato: Unidad
Ref.: DM011592
Breve descripción: M10 x 1.50 mm
l2 mm | M: 18 | 10.00
l1 mm | [/] a mm: 11 | 80
P mm | l3 mm: 10 | 1.50
d2 Ø mm | l4 mm: 8.00 | 34
z | Drill Ø: 3 | 8.5
Formato: Unidad
Ref.: DM011593
Breve descripción: M10 x 1.50 mm
l2 mm | M: 18 | 10.00
l1 mm | [/] a mm: 11 | 80
P mm | l3 mm: 10 | 1.50
d2 Ø mm | l4 mm: 8.00 | 34
z | Drill Ø: 3 | 8.5
Formato: Unidad
Ref.: DM011594
Breve descripción: M10 x 1.50 mm
l2 mm | M: 18 | 10.00
l1 mm | [/] a mm: 11 | 80
P mm | l3 mm: 10 | 1.50
d2 Ø mm | l4 mm: 8.00 | 34
z | Drill Ø: 3 | 8.5
Formato: Unidad
Ref.: DM011595
Breve descripción: M10 x 1.50 mm
l2 mm | M: 18 | 10.00
l1 mm | [/] a mm: 11 | 80
P mm | l3 mm: 10 | 1.50
d2 Ø mm | l4 mm: 8.00 | 34
z | Drill Ø: 3 | 8.5
Formato: Unidad
Ref.: DM011596
Breve descripción: M10 x 1.50 mm
l2 mm | M: 18 | 10.00
l1 mm | [/] a mm: 11 | 80
P mm | l3 mm: 10 | 1.50
d2 Ø mm | l4 mm: 8.00 | 34
z | Drill Ø: 3 | 8.5
Formato: Unidad
Ref.: DM011597
Breve descripción: M11 x 1.50 mm
l2 mm | M: 19 | 8.00
l1 mm | [/] a mm: 9 | 85
P mm | l3 mm: 11 | 1.50
d2 Ø mm | l4 mm: 6.30 | -
z | Drill Ø: 3 | 9.5
Formato: Unidad
Ref.: DM011598
Breve descripción: M11 x 1.50 mm
l2 mm | M: 19 | 8.00
l1 mm | [/] a mm: 9 | 85
P mm | l3 mm: 11 | 1.50
d2 Ø mm | l4 mm: 6.30 | -
z | Drill Ø: 3 | 9.5
Formato: Unidad
Ref.: DM011599
Breve descripción: M11 x 1.50 mm
l2 mm | M: 19 | 8.00
l1 mm | [/] a mm: 9 | 85
P mm | l3 mm: 11 | 1.50
d2 Ø mm | l4 mm: 6.30 | -
z | Drill Ø: 3 | 9.5
Formato: Unidad
Ref.: DM011600
Breve descripción: M11 x 1.50 mm
l2 mm | M: 19 | 8.00
l1 mm | [/] a mm: 9 | 85
P mm | l3 mm: 11 | 1.50
d2 Ø mm | l4 mm: 6.30 | -
z | Drill Ø: 3 | 9.5
Formato: Unidad
Ref.: DM011601
Breve descripción: M12 x 1.75 mm
l2 mm | M: 22 | 9.00
l1 mm | [/] a mm: 10 | 89
P mm | l3 mm: 12 | 1.75
d2 Ø mm | l4 mm: 7.10 | -
z | Drill Ø: 3 | 10.3
Formato: Unidad
Ref.: DM011602
Breve descripción: M12 x 1.75 mm
l2 mm | M: 22 | 9.00
l1 mm | [/] a mm: 10 | 89
P mm | l3 mm: 12 | 1.75
d2 Ø mm | l4 mm: 7.10 | -
z | Drill Ø: 3 | 10.3
Formato: Unidad
Ref.: DM011603
Breve descripción: M12 x 1.75 mm
l2 mm | M: 22 | 9.00
l1 mm | [/] a mm: 10 | 89
P mm | l3 mm: 12 | 1.75
d2 Ø mm | l4 mm: 7.10 | -
z | Drill Ø: 3 | 10.3
Formato: Unidad
Ref.: DM011604
Breve descripción: M12 x 1.75 mm
l2 mm | M: 22 | 9.00
l1 mm | [/] a mm: 10 | 89
P mm | l3 mm: 12 | 1.75
d2 Ø mm | l4 mm: 7.10 | -
z | Drill Ø: 3 | 10.3
Formato: Unidad
Ref.: DM011605
Breve descripción: M12 x 1.75 mm
l2 mm | M: 22 | 9.00
l1 mm | [/] a mm: 10 | 89
P mm | l3 mm: 12 | 1.75
d2 Ø mm | l4 mm: 7.10 | -
z | Drill Ø: 3 | 10.3
Formato: Unidad
Ref.: DM011606
Breve descripción: M12 x 1.75 mm
l2 mm | M: 22 | 9.00
l1 mm | [/] a mm: 10 | 89
P mm | l3 mm: 12 | 1.75
d2 Ø mm | l4 mm: 7.10 | -
z | Drill Ø: 3 | 10.3
Formato: Unidad
Ref.: DM011607
Breve descripción: M14 x 2.00 mm
l2 mm | M: 24 | 11.20
l1 mm | [/] a mm: 12 | 95
P mm | l3 mm: 14 | 2.00
d2 Ø mm | l4 mm: 9.00 | -
z | Drill Ø: 4 | 12
Formato: Unidad
Ref.: DM011608
Breve descripción: M14 x 2.00 mm
l2 mm | M: 24 | 11.20
l1 mm | [/] a mm: 12 | 95
P mm | l3 mm: 14 | 2.00
d2 Ø mm | l4 mm: 9.00 | -
z | Drill Ø: 4 | 12
Formato: Unidad
Ref.: DM011609
Breve descripción: M14 x 2.00 mm
l2 mm | M: 24 | 11.20
l1 mm | [/] a mm: 12 | 95
P mm | l3 mm: 14 | 2.00
d2 Ø mm | l4 mm: 9.00 | -
z | Drill Ø: 4 | 12
Formato: Unidad
Ref.: DM011610
Breve descripción: M14 x 2.00 mm
l2 mm | M: 24 | 11.20
l1 mm | [/] a mm: 12 | 95
P mm | l3 mm: 14 | 2.00
d2 Ø mm | l4 mm: 9.00 | -
z | Drill Ø: 4 | 12
Formato: Unidad
Ref.: DM011611
Breve descripción: M14 x 2.00 mm
l2 mm | M: 24 | 11.20
l1 mm | [/] a mm: 12 | 95
P mm | l3 mm: 14 | 2.00
d2 Ø mm | l4 mm: 9.00 | -
z | Drill Ø: 4 | 12
Formato: Unidad
Ref.: DM011612
Breve descripción: M14 x 2.00 mm
l2 mm | M: 24 | 11.20
l1 mm | [/] a mm: 12 | 95
P mm | l3 mm: 14 | 2.00
d2 Ø mm | l4 mm: 9.00 | -
z | Drill Ø: 4 | 12
Formato: Unidad
Ref.: DM011613
Breve descripción: M16 x 2.00 mm
l2 mm | M: 24 | 12.50
l1 mm | [/] a mm: 13 | 102
P mm | l3 mm: 16 | 2.00
d2 Ø mm | l4 mm: 10.00 | -
z | Drill Ø: 4 | 14
Formato: Unidad
Ref.: DM011614
Breve descripción: M16 x 2.00 mm
l2 mm | M: 24 | 12.50
l1 mm | [/] a mm: 13 | 102
P mm | l3 mm: 16 | 2.00
d2 Ø mm | l4 mm: 10.00 | -
z | Drill Ø: 4 | 14
Formato: Unidad
Ref.: DM011615
Breve descripción: M16 x 2.00 mm
l2 mm | M: 24 | 12.50
l1 mm | [/] a mm: 13 | 102
P mm | l3 mm: 16 | 2.00
d2 Ø mm | l4 mm: 10.00 | -
z | Drill Ø: 4 | 14
Formato: Unidad
Ref.: DM011616
Breve descripción: M16 x 2.00 mm
l2 mm | M: 24 | 12.50
l1 mm | [/] a mm: 13 | 102
P mm | l3 mm: 16 | 2.00
d2 Ø mm | l4 mm: 10.00 | -
z | Drill Ø: 4 | 14
Formato: Unidad
Ref.: DM011617
Breve descripción: M16 x 2.00 mm
l2 mm | M: 24 | 12.50
l1 mm | [/] a mm: 13 | 102
P mm | l3 mm: 16 | 2.00
d2 Ø mm | l4 mm: 10.00 | -
z | Drill Ø: 4 | 14
Formato: Unidad
Ref.: DM011618
Breve descripción: M16 x 2.00 mm
l2 mm | M: 24 | 12.50
l1 mm | [/] a mm: 13 | 102
P mm | l3 mm: 16 | 2.00
d2 Ø mm | l4 mm: 10.00 | -
z | Drill Ø: 4 | 14
Formato: Unidad
Ref.: DM011619
Breve descripción: M18 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 18 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 15.5
Formato: Unidad
Ref.: DM011620
Breve descripción: M18 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 18 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 15.5
Formato: Unidad
Ref.: DM011621
Breve descripción: M18 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 18 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 15.5
Formato: Unidad
Ref.: DM011622
Breve descripción: M18 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 18 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 15.5
Formato: Unidad
Ref.: DM011519
Breve descripción: M2.2 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.2 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 1.75
Formato: Unidad
Ref.: DM011520
Breve descripción: M2.2 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.2 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 1.75
Formato: Unidad
Ref.: DM011521
Breve descripción: M2.2 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.2 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 1.75
Formato: Unidad
Ref.: DM011522
Breve descripción: M2.3 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.3 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 1.85
Formato: Unidad
Ref.: DM011523
Breve descripción: M2.3 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.3 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 1.85
Formato: Unidad
Ref.: DM011524
Breve descripción: M2.3 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.3 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 1.85
Formato: Unidad
Ref.: DM011525
Breve descripción: M2.5 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.5 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.05
Formato: Unidad
Ref.: DM011526
Breve descripción: M2.5 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.5 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.05
Formato: Unidad
Ref.: DM011527
Breve descripción: M2.5 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.5 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.05
Formato: Unidad
Ref.: DM011528
Breve descripción: M2.5 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.5 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.05
Formato: Unidad
Ref.: DM011529
Breve descripción: M2.5 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.5 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.05
Formato: Unidad
Ref.: DM011530
Breve descripción: M2.6 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.6 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.15
Formato: Unidad
Ref.: DM011531
Breve descripción: M2.6 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.6 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.15
Formato: Unidad
Ref.: DM011532
Breve descripción: M2.6 x 0.45 mm
l2 mm | M: 9.5 | 2.80
l1 mm | [/] a mm: 5 | 44.5
P mm | l3 mm: 2.6 | 0.45
d2 Ø mm | l4 mm: 2.24 | 9.5
z | Drill Ø: 3 | 2.15
Formato: Unidad
Ref.: DM011511
Breve descripción: M2 x 0.40 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.40
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.6
Formato: Unidad
Ref.: DM011512
Breve descripción: M2 x 0.40 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.40
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.6
Formato: Unidad
Ref.: DM011513
Breve descripción: M2 x 0.40 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.40
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.6
Formato: Unidad
Ref.: DM011514
Breve descripción: M2 x 0.40 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.40
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.6
Formato: Unidad
Ref.: DM011515
Breve descripción: M2 x 0.40 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.40
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.6
Formato: Unidad
Ref.: DM011516
Breve descripción: M2 x 0.45 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.45
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.55
Formato: Unidad
Ref.: DM011517
Breve descripción: M2 x 0.45 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.45
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.55
Formato: Unidad
Ref.: DM011518
Breve descripción: M2 x 0.45 mm
l2 mm | M: 8 | 2.50
l1 mm | [/] a mm: 4 | 41
P mm | l3 mm: 2 | 0.45
d2 Ø mm | l4 mm: 2.00 | 8
z | Drill Ø: 3 | 1.55
Formato: Unidad
Ref.: DM011623
Breve descripción: M20 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 20 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 17.5
Formato: Unidad
Ref.: DM011624
Breve descripción: M20 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 20 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 17.5
Formato: Unidad
Ref.: DM011625
Breve descripción: M20 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 20 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 17.5
Formato: Unidad
Ref.: DM011626
Breve descripción: M20 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 20 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 17.5
Formato: Unidad
Ref.: DM011627
Breve descripción: M20 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 20 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 17.5
Formato: Unidad
Ref.: DM011628
Breve descripción: M20 x 2.50 mm
l2 mm | M: 29 | 14.00
l1 mm | [/] a mm: 14 | 112
P mm | l3 mm: 20 | 2.50
d2 Ø mm | l4 mm: 11.20 | -
z | Drill Ø: 4 | 17.5
Formato: Unidad
Ref.: DM011629
Breve descripción: M22 x 2.50 mm
l2 mm | M: 29 | 16.00
l1 mm | [/] a mm: 16 | 118
P mm | l3 mm: 22 | 2.50
d2 Ø mm | l4 mm: 12.50 | -
z | Drill Ø: 4 | 19.5
Formato: Unidad
Ref.: DM011630
Breve descripción: M22 x 2.50 mm
l2 mm | M: 29 | 16.00
l1 mm | [/] a mm: 16 | 118
P mm | l3 mm: 22 | 2.50
d2 Ø mm | l4 mm: 12.50 | -
z | Drill Ø: 4 | 19.5
Formato: Unidad
Ref.: DM011631
Breve descripción: M22 x 2.50 mm
l2 mm | M: 29 | 16.00
l1 mm | [/] a mm: 16 | 118
P mm | l3 mm: 22 | 2.50
d2 Ø mm | l4 mm: 12.50 | -
z | Drill Ø: 4 | 19.5
Formato: Unidad
Ref.: DM011632
Breve descripción: M22 x 2.50 mm
l2 mm | M: 29 | 16.00
l1 mm | [/] a mm: 16 | 118
P mm | l3 mm: 22 | 2.50
d2 Ø mm | l4 mm: 12.50 | -
z | Drill Ø: 4 | 19.5
Formato: Unidad
Ref.: DM011633
Breve descripción: M24 x 3.00 mm
l2 mm | M: 35 | 18.00
l1 mm | [/] a mm: 18 | 130
P mm | l3 mm: 24 | 3.00
d2 Ø mm | l4 mm: 14.00 | -
z | Drill Ø: 4 | 21
Formato: Unidad
Ref.: DM011634
Breve descripción: M24 x 3.00 mm
l2 mm | M: 35 | 18.00
l1 mm | [/] a mm: 18 | 130
P mm | l3 mm: 24 | 3.00
d2 Ø mm | l4 mm: 14.00 | -
z | Drill Ø: 4 | 21
Formato: Unidad
Ref.: DM011635
Breve descripción: M24 x 3.00 mm
l2 mm | M: 35 | 18.00
l1 mm | [/] a mm: 18 | 130
P mm | l3 mm: 24 | 3.00
d2 Ø mm | l4 mm: 14.00 | -
z | Drill Ø: 4 | 21
Formato: Unidad
Ref.: DM011636
Breve descripción: M24 x 3.00 mm
l2 mm | M: 35 | 18.00
l1 mm | [/] a mm: 18 | 130
P mm | l3 mm: 24 | 3.00
d2 Ø mm | l4 mm: 14.00 | -
z | Drill Ø: 4 | 21
Formato: Unidad
Ref.: DM011637
Breve descripción: M24 x 3.00 mm
l2 mm | M: 35 | 18.00
l1 mm | [/] a mm: 18 | 130
P mm | l3 mm: 24 | 3.00
d2 Ø mm | l4 mm: 14.00 | -
z | Drill Ø: 4 | 21
Formato: Unidad
Ref.: DM011638
Breve descripción: M27 x 3.00 mm
l2 mm | M: 35 | 20.00
l1 mm | [/] a mm: 20 | 135
P mm | l3 mm: 27 | 3.00
d2 Ø mm | l4 mm: 16.00 | -
z | Drill Ø: 4 | 24
Formato: Unidad
Ref.: DM011639
Breve descripción: M27 x 3.00 mm
l2 mm | M: 35 | 20.00
l1 mm | [/] a mm: 20 | 135
P mm | l3 mm: 27 | 3.00
d2 Ø mm | l4 mm: 16.00 | -
z | Drill Ø: 4 | 24
Formato: Unidad
Ref.: DM011640
Breve descripción: M27 x 3.00 mm
l2 mm | M: 35 | 20.00
l1 mm | [/] a mm: 20 | 135
P mm | l3 mm: 27 | 3.00
d2 Ø mm | l4 mm: 16.00 | -
z | Drill Ø: 4 | 24
Formato: Unidad
Ref.: DM011542
Breve descripción: M3.5 x 0.60 mm
l2 mm | M: 14 | 3.55
l1 mm | [/] a mm: 5 | 50
P mm | l3 mm: 3.5 | 0.60
d2 Ø mm | l4 mm: 2.80 | 14
z | Drill Ø: 3 | 2.9
Formato: Unidad
Ref.: DM011543
Breve descripción: M3.5 x 0.60 mm
l2 mm | M: 14 | 3.55
l1 mm | [/] a mm: 5 | 50
P mm | l3 mm: 3.5 | 0.60
d2 Ø mm | l4 mm: 2.80 | 14
z | Drill Ø: 3 | 2.9
Formato: Unidad
Ref.: DM011544
Breve descripción: M3.5 x 0.60 mm
l2 mm | M: 14 | 3.55
l1 mm | [/] a mm: 5 | 50
P mm | l3 mm: 3.5 | 0.60
d2 Ø mm | l4 mm: 2.80 | 14
z | Drill Ø: 3 | 2.9
Formato: Unidad
Ref.: DM011545
Breve descripción: M3.5 x 0.60 mm
l2 mm | M: 14 | 3.55
l1 mm | [/] a mm: 5 | 50
P mm | l3 mm: 3.5 | 0.60
d2 Ø mm | l4 mm: 2.80 | 14
z | Drill Ø: 3 | 2.9
Formato: Unidad
Ref.: DM011533
Breve descripción: M3 x 0.50 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.50
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.5
Formato: Unidad
Ref.: DM011534
Breve descripción: M3 x 0.50 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.50
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.5
Formato: Unidad
Ref.: DM011535
Breve descripción: M3 x 0.50 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.50
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.5
Formato: Unidad
Ref.: DM011536
Breve descripción: M3 x 0.50 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.50
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.5
Formato: Unidad
Ref.: DM011537
Breve descripción: M3 x 0.50 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.50
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.5
Formato: Unidad
Ref.: DM011538
Breve descripción: M3 x 0.50 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.50
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.5
Formato: Unidad
Ref.: DM011539
Breve descripción: M3 x 0.60 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.60
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.4
Formato: Unidad
Ref.: DM011540
Breve descripción: M3 x 0.60 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.60
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.4
Formato: Unidad
Ref.: DM011541
Breve descripción: M3 x 0.60 mm
l2 mm | M: 12.5 | 3.15
l1 mm | [/] a mm: 5 | 48
P mm | l3 mm: 3 | 0.60
d2 Ø mm | l4 mm: 2.50 | 12.5
z | Drill Ø: 3 | 2.4
Formato: Unidad
Ref.: DM011641
Breve descripción: M30 x 3.50 mm
l2 mm | M: 41 | 20.00
l1 mm | [/] a mm: 20 | 138
P mm | l3 mm: 30 | 3.50
d2 Ø mm | l4 mm: 16.00 | -
z | Drill Ø: 4 | 26.5
Formato: Unidad
Ref.: DM011642
Breve descripción: M30 x 3.50 mm
l2 mm | M: 41 | 20.00
l1 mm | [/] a mm: 20 | 138
P mm | l3 mm: 30 | 3.50
d2 Ø mm | l4 mm: 16.00 | -
z | Drill Ø: 4 | 26.5
Formato: Unidad
Ref.: DM011643
Breve descripción: M30 x 3.50 mm
l2 mm | M: 41 | 20.00
l1 mm | [/] a mm: 20 | 138
P mm | l3 mm: 30 | 3.50
d2 Ø mm | l4 mm: 16.00 | -
z | Drill Ø: 4 | 26.5
Formato: Unidad
Ref.: DM011644
Breve descripción: M33 x 3.50 mm
l2 mm | M: 41 | 22.40
l1 mm | [/] a mm: 22 | 151
P mm | l3 mm: 33 | 3.50
d2 Ø mm | l4 mm: 18.00 | -
z | Drill Ø: 4 | 29.5
Formato: Unidad
Ref.: DM011645
Breve descripción: M33 x 3.50 mm
l2 mm | M: 41 | 22.40
l1 mm | [/] a mm: 22 | 151
P mm | l3 mm: 33 | 3.50
d2 Ø mm | l4 mm: 18.00 | -
z | Drill Ø: 4 | 29.5
Formato: Unidad
Ref.: DM011646
Breve descripción: M33 x 3.50 mm
l2 mm | M: 41 | 33
l1 mm | [/] a mm: 151 | 18.00
P mm | l3 mm: 3.50 | 22
d2 Ø mm | l4 mm: 22.40 | -
z | Drill Ø: 4 | 29.5
Formato: Unidad
Ref.: DM011647
Breve descripción: M36 x 4.00 mm
l2 mm | M: 47 | 36
l1 mm | [/] a mm: 162 | 20.00
P mm | l3 mm: 4.00 | 24
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 4 | 32
Formato: Unidad
Ref.: DM011648
Breve descripción: M36 x 4.00 mm
l2 mm | M: 47 | 36
l1 mm | [/] a mm: 162 | 20.00
P mm | l3 mm: 4.00 | 24
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 4 | 32
Formato: Unidad
Ref.: DM011649
Breve descripción: M36 x 4.00 mm
l2 mm | M: 47 | 36
l1 mm | [/] a mm: 162 | 20.00
P mm | l3 mm: 4.00 | 24
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 4 | 32
Formato: Unidad
Ref.: DM011652
Breve descripción: M39 x 4.00 mm
l2 mm | M: 47 | 28.00
l1 mm | [/] a mm: 26 | 170
P mm | l3 mm: 39 | 4.00
d2 Ø mm | l4 mm: 22.40 | -
z | Drill Ø: 4 | 35
Formato: Unidad
Ref.: DM011650
Breve descripción: M39 x 4.00 mm
l2 mm | M: 47 | 39
l1 mm | [/] a mm: 170 | 22.40
P mm | l3 mm: 4.00 | 26
d2 Ø mm | l4 mm: 28.00 | -
z | Drill Ø: 4 | 35
Formato: Unidad
Ref.: DM011651
Breve descripción: M39 x 4.00 mm
l2 mm | M: 47 | 39
l1 mm | [/] a mm: 170 | 22.40
P mm | l3 mm: 4.00 | 26
d2 Ø mm | l4 mm: 28.00 | -
z | Drill Ø: 4 | 35
Formato: Unidad
Ref.: DM011555
Breve descripción: M4.5 x 0.75 mm
l2 mm | M: 9.5 | 4.50
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4.5 | 0.75
d2 Ø mm | l4 mm: 3.55 | 18
z | Drill Ø: 3 | 3.8
Formato: Unidad
Ref.: DM011556
Breve descripción: M4.5 x 0.75 mm
l2 mm | M: 9.5 | 4.50
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4.5 | 0.75
d2 Ø mm | l4 mm: 3.55 | 18
z | Drill Ø: 3 | 3.8
Formato: Unidad
Ref.: DM011557
Breve descripción: M4.5 x 0.75 mm
l2 mm | M: 9.5 | 4.50
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4.5 | 0.75
d2 Ø mm | l4 mm: 3.55 | 18
z | Drill Ø: 3 | 3.8
Formato: Unidad
Ref.: DM011558
Breve descripción: M4.5 x 0.75 mm
l2 mm | M: 9.5 | 4.50
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4.5 | 0.75
d2 Ø mm | l4 mm: 3.55 | 18
z | Drill Ø: 3 | 3.8
Formato: Unidad
Ref.: DM011546
Breve descripción: M4 x 0.70 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.70
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.3
Formato: Unidad
Ref.: DM011547
Breve descripción: M4 x 0.70 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.70
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.3
Formato: Unidad
Ref.: DM011548
Breve descripción: M4 x 0.70 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.70
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.3
Formato: Unidad
Ref.: DM011549
Breve descripción: M4 x 0.70 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.70
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.3
Formato: Unidad
Ref.: DM011551
Breve descripción: M4 x 0.70 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.70
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.3
Formato: Unidad
Ref.: DM011550
Breve descripción: M4 x 0.75 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.70
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.3
Formato: Unidad
Ref.: DM011552
Breve descripción: M4 x 0.75 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.75
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.25
Formato: Unidad
Ref.: DM011553
Breve descripción: M4 x 0.75 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.75
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.25
Formato: Unidad
Ref.: DM011554
Breve descripción: M4 x 0.75 mm
l2 mm | M: 14 | 4.00
l1 mm | [/] a mm: 6 | 53
P mm | l3 mm: 4 | 0.75
d2 Ø mm | l4 mm: 3.15 | 14
z | Drill Ø: 3 | 3.25
Formato: Unidad
Ref.: DM011653
Breve descripción: M42 x 4.50 mm
l2 mm | M: 53 | 28.00
l1 mm | [/] a mm: 26 | 170
P mm | l3 mm: 42 | 4.50
d2 Ø mm | l4 mm: 22.40 | -
z | Drill Ø: 6 | 37.5
Formato: Unidad
Ref.: DM011654
Breve descripción: M42 x 4.50 mm
l2 mm | M: 53 | 28.00
l1 mm | [/] a mm: 26 | 170
P mm | l3 mm: 42 | 4.50
d2 Ø mm | l4 mm: 22.40 | -
z | Drill Ø: 6 | 37.5
Formato: Unidad
Ref.: DM011655
Breve descripción: M42 x 4.50 mm
l2 mm | M: 53 | 28.00
l1 mm | [/] a mm: 26 | 170
P mm | l3 mm: 42 | 4.50
d2 Ø mm | l4 mm: 22.40 | -
z | Drill Ø: 6 | 37.5
Formato: Unidad
Ref.: DM011656
Breve descripción: M45 x 4.50 mm
l2 mm | M: 54 | 31.50
l1 mm | [/] a mm: 28 | 187
P mm | l3 mm: 45 | 4.50
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 6 | 40.5
Formato: Unidad
Ref.: DM011657
Breve descripción: M45 x 4.50 mm
l2 mm | M: 54 | 31.50
l1 mm | [/] a mm: 28 | 187
P mm | l3 mm: 45 | 4.50
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 6 | 40.5
Formato: Unidad
Ref.: DM011658
Breve descripción: M45 x 4.50 mm
l2 mm | M: 54 | 31.50
l1 mm | [/] a mm: 28 | 187
P mm | l3 mm: 45 | 4.50
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 6 | 40.5
Formato: Unidad
Ref.: DM011659
Breve descripción: M48 x 5.00 mm
l2 mm | M: 60 | 31.50
l1 mm | [/] a mm: 28 | 187
P mm | l3 mm: 48 | 5.00
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 6 | 43
Formato: Unidad
Ref.: DM011660
Breve descripción: M48 x 5.00 mm
l2 mm | M: 60 | 31.50
l1 mm | [/] a mm: 28 | 187
P mm | l3 mm: 48 | 5.00
d2 Ø mm | l4 mm: 25.00 | -
z | Drill Ø: 6 | 43
Formato: Unidad
Ref.: DM011661
Breve descripción: M48 x 5.00 mm
l2 mm | M: 60 | 48
l1 mm | [/] a mm: 187 | 25.00
P mm | l3 mm: 5.00 | 28
d2 Ø mm | l4 mm: 31.50 | -
z | Drill Ø: 6 | 43
Formato: Unidad
Ref.: DM011568
Breve descripción: M5.5 x 0.90 mm
l2 mm | M: 12 | 5.5
l1 mm | [/] a mm: 62 | 4.50
P mm | l3 mm: 0.90 | 7
d2 Ø mm | l4 mm: 5.60 | 21
z | Drill Ø: 3 | 4.6
Formato: Unidad
Ref.: DM011569
Breve descripción: M5.5 x 0.90 mm
l2 mm | M: 12 | 5.5
l1 mm | [/] a mm: 62 | 4.50
P mm | l3 mm: 0.90 | 7
d2 Ø mm | l4 mm: 5.60 | 21
z | Drill Ø: 3 | 4.6
Formato: Unidad
Ref.: DM011570
Breve descripción: M5.5 x 0.90 mm
l2 mm | M: 12 | 5.5
l1 mm | [/] a mm: 62 | 4.50
P mm | l3 mm: 0.90 | 7
d2 Ø mm | l4 mm: 5.60 | 21
z | Drill Ø: 3 | 4.6
Formato: Unidad
Ref.: DM011559
Breve descripción: M5 x 0.80 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.80 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.2
Formato: Unidad
Ref.: DM011560
Breve descripción: M5 x 0.80 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.80 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.2
Formato: Unidad
Ref.: DM011561
Breve descripción: M5 x 0.80 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.80 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.2
Formato: Unidad
Ref.: DM011562
Breve descripción: M5 x 0.80 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.80 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.2
Formato: Unidad
Ref.: DM011563
Breve descripción: M5 x 0.80 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.80 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.2
Formato: Unidad
Ref.: DM011564
Breve descripción: M5 x 0.80 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.80 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.2
Formato: Unidad
Ref.: DM011565
Breve descripción: M5 x 0.90 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.90 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.1
Formato: Unidad
Ref.: DM011566
Breve descripción: M5 x 0.90 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.90 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.1
Formato: Unidad
Ref.: DM011567
Breve descripción: M5 x 0.90 mm
l2 mm | M: 11 | 5
l1 mm | [/] a mm: 58 | 4.00
P mm | l3 mm: 0.90 | 7
d2 Ø mm | l4 mm: 5.00 | 22
z | Drill Ø: 3 | 4.1
Formato: Unidad
Ref.: DM011662
Breve descripción: M52 x 5.00 mm
l2 mm | M: 60 | 52
l1 mm | [/] a mm: 200 | 28.00
P mm | l3 mm: 5.00 | 31
d2 Ø mm | l4 mm: 35.50 | -
z | Drill Ø: 6 | 47
Formato: Unidad
Ref.: DM011663
Breve descripción: M56 x 5.50 mm
l2 mm | M: 60 | 56
l1 mm | [/] a mm: 200 | 28.00
P mm | l3 mm: 5.50 | 31
d2 Ø mm | l4 mm: 35.50 | -
z | Drill Ø: 6 | 50.5
Formato: Unidad
Ref.: DM011571
Breve descripción: M6 x 1.00 mm
l2 mm | M: 13 | 6
l1 mm | [/] a mm: 66 | 5.00
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 6.30 | 26
z | Drill Ø: 3 | 5
Formato: Unidad
Ref.: DM011572
Breve descripción: M6 x 1.00 mm
l2 mm | M: 13 | 6
l1 mm | [/] a mm: 66 | 5.00
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 6.30 | 26
z | Drill Ø: 3 | 5
Formato: Unidad
Ref.: DM011573
Breve descripción: M6 x 1.00 mm
l2 mm | M: 13 | 6
l1 mm | [/] a mm: 66 | 5.00
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 6.30 | 26
z | Drill Ø: 3 | 5
Formato: Unidad
Ref.: DM011574
Breve descripción: M6 x 1.00 mm
l2 mm | M: 13 | 6
l1 mm | [/] a mm: 66 | 5.00
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 6.30 | 26
z | Drill Ø: 3 | 5
Formato: Unidad
Ref.: DM011575
Breve descripción: M6 x 1.00 mm
l2 mm | M: 13 | 6
l1 mm | [/] a mm: 66 | 5.00
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 6.30 | 26
z | Drill Ø: 3 | 5
Formato: Unidad
Ref.: DM011576
Breve descripción: M6 x 1.00 mm
l2 mm | M: 13 | 6
l1 mm | [/] a mm: 66 | 5.00
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 6.30 | 26
z | Drill Ø: 3 | 5
Formato: Unidad
Ref.: DM011577
Breve descripción: M7 x 1.00 mm
l2 mm | M: 13 | 7
l1 mm | [/] a mm: 66 | 5.60
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 7.10 | 26
z | Drill Ø: 3 | 6
Formato: Unidad
Ref.: DM011578
Breve descripción: M7 x 1.00 mm
l2 mm | M: 13 | 7
l1 mm | [/] a mm: 66 | 5.60
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 7.10 | 26
z | Drill Ø: 3 | 6
Formato: Unidad
Ref.: DM011579
Breve descripción: M7 x 1.00 mm
l2 mm | M: 13 | 7
l1 mm | [/] a mm: 66 | 5.60
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 7.10 | 26
z | Drill Ø: 3 | 6
Formato: Unidad
Ref.: DM011580
Breve descripción: M7 x 1.00 mm
l2 mm | M: 13 | 7
l1 mm | [/] a mm: 66 | 5.60
P mm | l3 mm: 1.00 | 8
d2 Ø mm | l4 mm: 7.10 | 26
z | Drill Ø: 3 | 6
Formato: Unidad
Ref.: DM011581
Breve descripción: M8 x 1.25 mm
l2 mm | M: 16 | 8
l1 mm | [/] a mm: 72 | 6.30
P mm | l3 mm: 1.25 | 9
d2 Ø mm | l4 mm: 8.00 | 29
z | Drill Ø: 3 | 6.8
Formato: Unidad
Ref.: DM011582
Breve descripción: M8 x 1.25 mm
l2 mm | M: 16 | 8
l1 mm | [/] a mm: 72 | 6.30
P mm | l3 mm: 1.25 | 9
d2 Ø mm | l4 mm: 8.00 | 29
z | Drill Ø: 3 | 6.8
Formato: Unidad
Ref.: DM011583
Breve descripción: M8 x 1.25 mm
l2 mm | M: 16 | 8
l1 mm | [/] a mm: 72 | 6.30
P mm | l3 mm: 1.25 | 9
d2 Ø mm | l4 mm: 8.00 | 29
z | Drill Ø: 3 | 6.8
Formato: Unidad
Ref.: DM011584
Breve descripción: M8 x 1.25 mm
l2 mm | M: 16 | 8
l1 mm | [/] a mm: 72 | 6.30
P mm | l3 mm: 1.25 | 9
d2 Ø mm | l4 mm: 8.00 | 29
z | Drill Ø: 3 | 6.8
Formato: Unidad
Ref.: DM011585
Breve descripción: M8 x 1.25 mm
l2 mm | M: 16 | 8
l1 mm | [/] a mm: 72 | 6.30
P mm | l3 mm: 1.25 | 9
d2 Ø mm | l4 mm: 8.00 | 29
z | Drill Ø: 3 | 6.8
Formato: Unidad
Ref.: DM011586
Breve descripción: M8 x 1.25 mm
l2 mm | M: 16 | 8
l1 mm | [/] a mm: 72 | 6.30
P mm | l3 mm: 1.25 | 9
d2 Ø mm | l4 mm: 8.00 | 29
z | Drill Ø: 3 | 6.8
Formato: Unidad
Ref.: DM011587
Breve descripción: M9 x 1.25 mm
l2 mm | M: 16 | 9
l1 mm | [/] a mm: 72 | 7.10
P mm | l3 mm: 1.25 | 10
d2 Ø mm | l4 mm: 9.00 | 29
z | Drill Ø: 3 | 7.8
Formato: Unidad
Ref.: DM011588
Breve descripción: M9 x 1.25 mm
l2 mm | M: 16 | 9
l1 mm | [/] a mm: 72 | 7.10
P mm | l3 mm: 1.25 | 10
d2 Ø mm | l4 mm: 9.00 | 29
z | Drill Ø: 3 | 7.8
Formato: Unidad
Ref.: DM011589
Breve descripción: M9 x 1.25 mm
l2 mm | M: 16 | 9
l1 mm | [/] a mm: 72 | 7.10
P mm | l3 mm: 1.25 | 10
d2 Ø mm | l4 mm: 9.00 | 29
z | Drill Ø: 3 | 7.8
Formato: Unidad
Ref.: DM011590
Breve descripción: M9 x 1.25 mm
l2 mm | M: 16 | 9
l1 mm | [/] a mm: 72 | 7.10
P mm | l3 mm: 1.25 | 10
d2 Ø mm | l4 mm: 9.00 | 29
z | Drill Ø: 3 | 7.8
Formato: Unidad
Detalles
Más información
Especificaciones técnicas
Materiales excelentes:
Acero - Hierro dulce ( 200 - 400 N/mm² )
Acero - acero de construcción ( 350 - 700 N/mm² )
Acero - acero al carbono ( 350 - 850 N/mm² )
Acero - acero aleado ( 500 - 850 N/mm² )
Acero - acero aleado, para temple y revenido ( 850 - 1200 N/mm² )
Hierro Fundido - Grafito Laminar ( 150 - 500 N/mm² )
Hierro Fundido - Grafito Laminar ( 500 - 1000 N/mm² )
Hierro Fundido - Grafito Nodular ( 500 - 700 N/mm² )
Hierro Fundido - Grafito Nodular ( 700 - 1000 N/mm² )
Cobre - No aleado ( 250 - 350 N/mm² )
Cobre - Latón, bronces ( 350 - 700 N/mm² )
Cobre - cobre ( 400 - 700 N/mm² )
Cobre - Metal AMPCO ( 700 - 1500 N/mm² )
Magnesio, Aluminio - Al aleado,Si < 0.5% ( 300 - 600 N/mm² )
Magnesio, Aluminio - Al aleado,Si > 0.5% < 10% ( 300 - 600 N/mm² )
Magnesio, Aluminio - Al aleado,Si > 10% ( 300 - 600 N/mm² )
Materiales Sintéticos - plásticos de endurecimiento por calor ( 80 - 80 N/mm² )
Materiales Sintéticos - plásticos reforzados ( 800 - 1500 N/mm² )
Materiales excelentes:
Acero - Hierro dulce ( 200 - 400 N/mm² )
Acero - acero de construcción ( 350 - 700 N/mm² )
Acero - acero al carbono ( 350 - 850 N/mm² )
Acero - acero aleado ( 500 - 850 N/mm² )
Acero - acero aleado, para temple y revenido ( 850 - 1200 N/mm² )
Hierro Fundido - Grafito Laminar ( 150 - 500 N/mm² )
Hierro Fundido - Grafito Laminar ( 500 - 1000 N/mm² )
Hierro Fundido - Grafito Nodular ( 500 - 700 N/mm² )
Hierro Fundido - Grafito Nodular ( 700 - 1000 N/mm² )
Cobre - No aleado ( 250 - 350 N/mm² )
Cobre - Latón, bronces ( 350 - 700 N/mm² )
Cobre - cobre ( 400 - 700 N/mm² )
Cobre - Metal AMPCO ( 700 - 1500 N/mm² )
Magnesio, Aluminio - Al aleado,Si < 0.5% ( 300 - 600 N/mm² )
Magnesio, Aluminio - Al aleado,Si > 0.5% < 10% ( 300 - 600 N/mm² )
Magnesio, Aluminio - Al aleado,Si > 10% ( 300 - 600 N/mm² )
Materiales Sintéticos - plásticos de endurecimiento por calor ( 80 - 80 N/mm² )
Materiales Sintéticos - plásticos reforzados ( 800 - 1500 N/mm² )
Comentarios
Aún no hay opiniones ¡Sé el primero en opinar!
Preguntas
Aún no hay preguntas ¿Tienes alguna duda?
